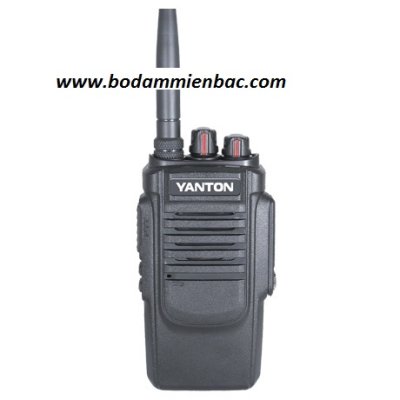

Bộ đàm cầm tay Yanton T-650
16channels
◊ 10W/5W/2W Power Switch with Side-key operation
◊ Chinese/English Voice Announcement
◊ Wide/Narrow Bandwidth Selection 12.5KHz/25KHz
◊ CTCSS&DCS non-standard code
◊ Battery Saver
◊ Low Battery Alert
◊ Check battery capacity by handheld operation and will annouce the capacity in current status
◊ VOX on/off, VOX level setting, VOX delay time setting
◊ DTMF/PTT ID
◊ Busy Channel Lockout
◊ Scan, Auto scan, Priority Channel Scan, Scan Add, Scan Delete
◊ TX Power Level Adjustment by hand operation
◊ Monitor / Monitor Momentary
◊ Squelch level report, Squelch level adjustment
◊ TOT function
◊ Emergency Alarm
◊ 2 Tone
◊ Remote Kill,Stun,Activate&Revive
◊ Tail Tone Eliminate
◊ Auto Power Off
◊ Wire Clone
◊ PC Software Program
| GENERAL |
| Frequency Range | 136-174MHz&400-480MHz&450-520MHz |
| Operating Temperature | -20℃ to +55℃ |
| Frequency Combination | please lock frequency synthesize |
| Frequency Stability | ±2.5ppm |
| Memory Channel | 16 |
| Working voltage | 7.4 |
| Antenna Impedance | 50Ω |
| Operating Mode | simplex of co-frequency or alien |
| Dimensions | 135*70*38mm |
Weight | 255G |
| TRANSMIT PART |
| RF power | 10W |
| Modulate Mode | F3E |
| Max.Freq.Deviation | ≤5KHz |
| Remain Wave Radiation | ≤60db |
| Transmitting Current | ≤1000mah |
| RECEIVER PART |
| Sensitivity | <0.20uV (12dB SINAD) |
| Squeich Sensitivity | <0.20uV |
| Intermodulation Antijamming | 50db |
| Audio Power output | 500mW |
| Receiving Current | ≤100mh |
| Squelch Stangby | 20ma |
