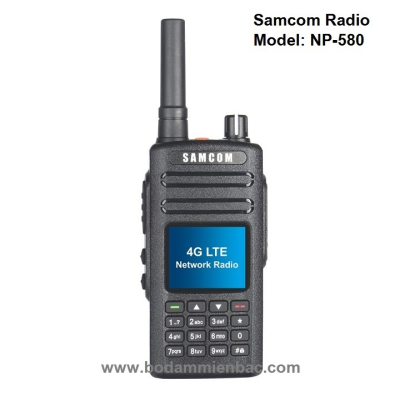

| 4G LTE Network Radio NP-580 |
|
|
| A PoC Radio but works more like two-way radio than others |
|
|
   |
|
|
| Application |
|
|
| The SAMCOM NP-580 is a rugged design 2G/3G/4G LTE PoC radio offering VoIP two way radio communication over a wide area utlising the cellular phone data broadband networks.This portable radio is equipped with the necessary features to ensure reliable communication at an affordable price. |
|
|
| Main Features |
|
|
| ■ IP55 rating dust and splash protection
■ Robust, rugged and heavy-duty design
■ 1.77 TFT LCD with 128*128 pixels and 65k colors
■ Programming software, Menu operation
■ Radio Stun Function/Text message/Dispatcher
■ Crisp, clear and high quality sound
■ 4200mAh high capcity Li-ion battery pack
■ Compatible with 4G/3G/2G Networks
■ Dual Working mode: 2-way calling&Cell Phone calling mode | ■ Motorola M2 pin type accessory connector
■ Group calls / Private calls / Dynamic groups calls
■ Voice recording
■ Inbuilt VOX for hands-free communication
■ Low battery alert
■ Built-in GPS tracking & map
■ OTA updates
■ Time-out timer
■ Lone worker mode
■ Panic/Emergency alarm button |
|
|
| Durable and Water-resistant
With polycarbonate housing and aluminum die-cast chassis, NP-580 is built for greater protection, it offers reliable performance in severe weather and environments. |
|
|
| Easy-To-Use
Thanks to the tough and textured buttons, chunky rotary channel, volume knobs and tricolor status LED. In addition, two buttons can be set to give immediate access to the most often-used features, making communication even simpler. |
|
|
| Crisp and High Quality Sound
1000 mW audio power output and unique audio box structure design make Nproviding clear crystal audio,it is equipped with a large 40mm speaker offering a full audio output, while tailored response characteristics provide optimum clarity even in noisy environments. |
|
|
| Compatible Accessories
Compatible with existing original Motorola accessories, thus save your investment. |
|
|
| Specifications |
|
|
| General |
| Radio Frequency | HSDPA/WCDMA:2100/1900/850(900)MHz
UMTS 2100/1900/900/850:Power Class 3(+24dBm+2.5/-1.5dBm)
EDGE 850MHz/900MHz: Power Class E2(+27dBm+4.5/-1.5dBm)
EDGE 1800MHz/1900Mhz:Power Class E2 (+26dBm+4.5/-2.5dBm) |
| SIM/SIMU | Standard Micro SIM(12*15*0.76mm) |
| Channel capacity | 1000 |
| Antenna Impedance | 50Ω |
| Battery Type | Lithium-ion, 4200mAh |
| Power Voltage Range | 3.7-4.2V DC±20% |
| Temperature Range | -20～+55℃ |
| Weights | 250g With antenna & battery |
| Dimensions(H×W×D) | 112×57×35mm |
|
|
| Transmitter |
| RF Power | WCDMA2100: ≤-108dBm
WCDMA1900:≤-109dBm
WCDMA900: ≤-109dBm
WCDMA850:≤-109dBm
GSM850/900/1800/1900: ≤-107dBm |
| FM Noise | 65/55dB |
| Spurious Emissions | -36dBm<1GHz,-30dBm>1GHz |
| Audio Response | +1 ~ -3dB |
| Audio Distortion | <3% |
|
| |
| Radio Version |
| Variant for EMEA/Korea/Thailand
SIM7600E-H:
•LTE-TDD: B38/B40/B41
•LTE-FDD: B1/B3/B5/B7/B8/B20
•UMTS/HSPA+: B1/B5/B8
•GSM/GPRS/EDGE: B3/B8
Variant for North America
SIM7600A-H:
•LTE-FDD: B2/B4/B12
•UMTS/HSPA+: B2/B5
SIM7600V-H:
•LTE-FDD: B2/B4/B5/B13
Variant for Australia/New Zealand/South America
SIM7600SA-H:
•LTE-TDD: B40/B66
•LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B28
•UMTS/HSPA+: B1/B2/B5/B8
•GSM/GPRS/EDGE: 850/900/1800/1900MHz
Variant for Japan
SIM7600JC-H:
•LTE-FDD: B1/B3/B8/B18/B19/B26 |
|
|
|
|
|
| Standard Accessories |
|
|
 |
