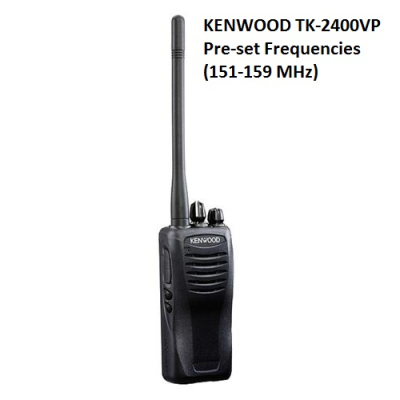

Bộ đàm cầm tay Kenwood TK-2400VP VHF
KENWOOD's new ProTalk Series offers a dynamic feature set and solid durability that you have become accustomed to, but has also been improved to offer a larger UHF "bank" of frequencies, and improved louder sound with a full 1 watt of power. Offering the ideal solution for communications in construction, manufacturing and warehousing, retail, hospitality, facility management and rental fleet applications.
| Model | TK-2400VP VHF | TK-3400UP UHF |
| GENERAL |
| Pre-set Frequencies | 27 (151-159 MHz) | 90 (451-470 MHz) |
| Number of Channels | K | 4 |
| K2 | 16 |
| Channel Spacing | Wide/Narrow | 25 kHz / 12.5 kHz |
| Operating Voltage | 7.5V DC±20% |
Battery Life
(5-5-90 duty cycle battery saver OFF) | with KNB-45L (2000mAh) | More than 17 hours |
| Operating Temperature Range* | -22°F ~ +140°F (-30°C ~ +60°C) |
| Frequency Stability | ±2.5ppm (-22°F ~ +140°F) |
| Antenna Impedance | 50 Ω |
| Dimensions (W x H x D), Projections not Included | Radio Only | 2.13 x 4.8 x 1.32 inch (54 x 122 x 33.7mm) |
| with KNB-45L | 2.13 x 4.8 x 1.32 inch (54 x 122 x 33.7mm) |
| Weight (net) | Radio Only | 5.8oz (165g) |
| with KNB-45L | 9.9oz (281g) |
| FCC ID | ALH34901 | ALH435002 |
| RECEIVER (Measurements made per TIA/EIA-603) |
| Sensitivity (12dB SINAD) | Wide/Narrow | 0.25μV/0.28μV |
| Selectivity | Wide/Narrow | 70dB/60dB |
| Intermodulation Distortion | Wide/Narrow | 70dB/60dB |
| Spurious Response | 70dB |
| Audio Distortion | less than 10% distortion |
| Audio Output | 1 W / 12 Ω (Internal Speaker) |
| 500mW / 8 Ω (External Speaker) |
| TRANSMITTER (Measurements made per TIA/EIA-603) |
| RF Power Output | High/Low | 2W/1W |
| Spurious Response | 70dB |
| FM Hum & Noise | Wide/Narrow | 45/40dB |
| Audio Distortion | Less than 5% |
| Modulation | Wide/Narrow | 16KØF3E/1 |
