Màn hình chuông cửa Video Intercom Dimansi DMS-08FC12A

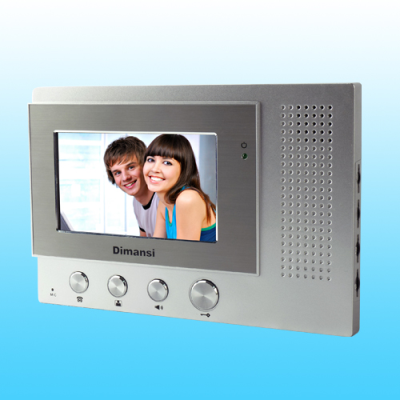

Product:4.3inch Color indoor monitor(DMS-08FC12A)
The product model：DMS-08FC12A
Product features
Description:
* Ultra-thin style, Decoration by wiredrawing aluminum sheet, High quality ABS material with strong impact resistance, without power consumption on standby
* Monitoring, talking, unlocking, call master center, emergency alarm, checking message functions
* Adapt SMD device, SMT craft, highly integration of PCB board makes quality more stable.
* Added protection of “electrical surge”, and avoid damaged by intense of current such as thunder-stroke, promoted further stability of products upon using pulse interference technology.
* Added protection function of ESD to guaranteed environmental adaptation, ensure products undamaged leading by electrostatic
*Have engaged functions of indoor monitor, To avoid power under-capacity when monitor open same time in same units
| Specification |
| Item | DMS-08FC12A |
| Type | Non security type |
| Display | 4" TFT-LCD |
| Resolution | 1440H×234Vdots |
| Input voltage | Video 15V,Audio 12V, without power consumption on standby |
| Standby current | 0mA |
| Working current | 350mA |
| Sound level | ≥70db(A) |
| Answering Pattern | Handfree |
| Access defense area | No |
| Doorbell function | Yes |
| SOS emergency call | Yes |
| External adjustable button | Brightness, contrast,Volume |
| Operating ambient temperature | -10℃～+55℃ |
| Operating ambient humidity | ≤90% |
| Dimension | 188mm ×124mm ×24mm |
| Installation | Wall-mount |
