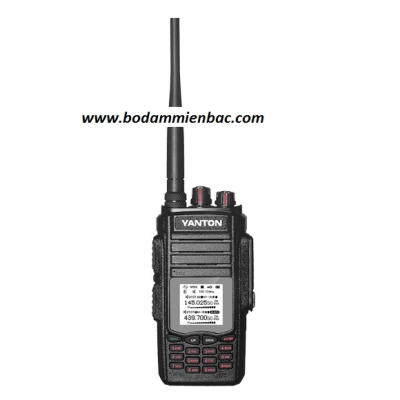

Bộ đàm cầm tay 2 dải tần số Yanton T-650UV
- 999 channels
- Duplex repeater (UHF to VHF or VHF to UHF)
- Output Power 10W
- High/Middle/ Low Power Switch:10/5/2W
- dual band standby, Dual band display
- Frequency:136-174MHZ&400-480MHZ 136-174MHZ&450-520MHZ
- scan mode (CO,TO,SE
- 8. Prority Scan Function
- 8 group scrambler
- Wide/Narrow bandwidth Selection(12.5KHZ/25KHZ)
- SingleTone Pulse Frequency: 2100Hz/1750Hz/1000Hz/1450Hz( sinalling for activating repeater)
- Reverse Frequency
- All Calls, Group Calls and Selective Calls
- Double Wait
- 15. 2 Tone /5 Tone
- Beep On/OFF
- Battery save
- Voice Chinese/ English
- Background color (3 color for choose)
- Roger
| GENERAL |
| Frequency Range | 136-174MHZ&400-480MH 136-174MHZ&450-520MHZ |
| Operating Temperature | -20℃-+50℃ |
| Frequency Combination | please lock frequency synthesize |
| Frequency Stability | ±2.5ppm |
| Memory Channel | 999 |
| Working voltage | 7.4V |
| Antenna Impedance | 50Ω |
| Operating Mode | simplex of co-frequency or alien |
| Dimensions | 135*38*38mm |
| Weight | 255G |
| TRANSMIT PART |
| RF power | 10W |
| Modulate Mode | F3E |
| Max.Freq.Deviation | ≤5KHz |
| Remain Wave Radiation | ≤60db |
| Transmitting Current | ≤1000mah |
| RECEIVER PART |
| Sensitivity | ＜0.20uV (12dB SINAD) |
| Squeich Sensitivity | ＜0.20uV |
| Intermodulation Antijamming | 50db |
| Audio Power output | 500mW |
| Receiving Current | ≤100mh |
| Squelch Stangby | 20ma |
