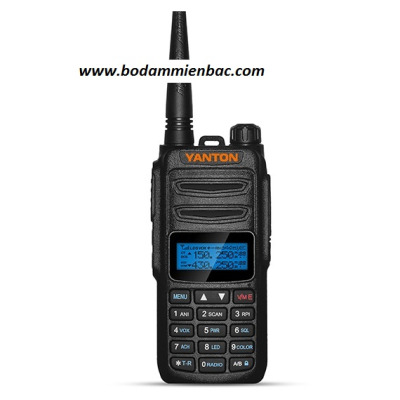

Bộ đàm cầm tay 2 dải tần số Yanton T-UV3D
1.Output power:5w
2.Frequency range:136-174mhz &350-390MHZ &400-480mhz
3. Dual band, dual display, dual standby
4. 2*128 channels storage
5.. Emergency alert
6.. FM radio and 25 stations storage
7. CTCSS/DCS scanning
8. 0~9 grades VOX selectable
9. Multi and priority channel scan function
10. Channel name display and setting
11. Power on message display
12. Frequency difference setting
13. PC software programmable, Wired clone function
14. Reverse frequency
15. Wide/Narrow Band(25kHz/12.5kHz)
16. Busy channel lock-out(BCLO)
17. Transmitter time-out timer(TOT)
18. End-tone Elimination
19. LED setting
20. Beep setting
21. Transmit over beeper
22. Dual monitor
23. Receive power saving
24. Battery power voltage
25. Repeater shift direction
26. Frequency spacing function
27. Shortcut menu operation mode
28. High/Low TX power selectable
29.PTT-ID
30.DTMF
31.Scrambler
32.2tone,5tone
33.1750HZ
34.Channel Scan/Prority Scan
35.2*128 channels
GENERAL |
Frequency Range | 136-174MHz/350-390MHz/400-480MHz |
Operating Temperature | -20℃ to +55℃ |
Frequency Combination | please lock frequency synthesize |
Frequency Stability | ±2.5ppm |
Memory Channel | 2*128channel |
Working voltage | 7.4V |
Antenna Impedance | 50Ω |
Operating Mode | simplex of co-frequency or alien |
Dimensions | 115*50*25MM |
Weight | 232g |
TRANSMIT PART |
RF power | 5w/1w |
Modulate Mode | F3E |
Max.Freq.Deviation | ≤5KHz |
Remain Wave Radiation | <-60dB |
Transmitting Current | ≤1000mA |
RECEIVER PART |
Sensitivity | <0.20uV (12dB SINAD) |
Squeich Sensitivity | <0.20uV |
Intermodulation Antijamming | 50dB |
Audio Power output | 500mW |
Receiving Current | ≤100mA |
Squelch Stangby | 20mA |
