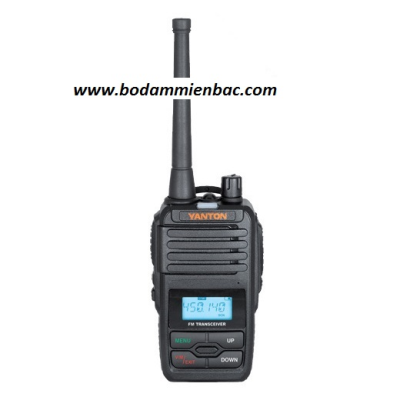

Bộ đàm cầm tay Yanton T-320
1.Output Power:3W
2.Frequency Range: 136-174MHz/400-480MHz
3. 199 Memory Channels
4.Scan
5.PC Software Programmable,Manual Programming,Wire Copy
6.VOX Function
7.CTCSS/DCS
8.Monitor, Reverse Frequency
9.Power Saving Function, Low Power Warning
10.High/Low Power Selective
11.Emergency Alarm
12.Whispering Function
13.Busy Channel Lock
14.Transmitter Time-out Timer(TOT)
15.Side Key Assignment
16. 0-9 Grades Squelch Level Setting
17.Group Calls
18.Calling Remind
19.LCD Display
20.Chinese and English Voice Prompt
21.FM Radio (87.5-108MHz)
22. 1200mAH Li-ion Battery
| GENERAL |
| Frequency Range | 136-174MHz/400-480MHz |
| Operating Temperature | -20℃ to +55℃ |
| Frequency Combination | please lock frequency synthesize |
| Frequency Stability | ±2.5ppm |
| Memory Channel | 199 |
| Working voltage | 3.7V |
| Antenna Impedance | 50Ω |
| Operating Mode | simplex of co-frequency or alien |
| Dimensions | 85*38*25mm |
| Weight | 232g |
| TRANSMIT PART |
| RF power | 3W |
| Modulate Mode | F3E |
| Max.Freq.Deviation | ≤5KHz |
| Remain Wave Radiation | ＜-60dB |
| Transmitting Current | ≤1000mA |
| RECEIVER PART |
| Sensitivity | ＜0.20uV (12dB SINAD) |
| Squeich Sensitivity | ＜0.20uV |
| Intermodulation Antijamming | 50dB |
| Audio Power output | 500mW |
| Receiving Current | ≤100mA |
| Squelch Stangby | 20mA |
