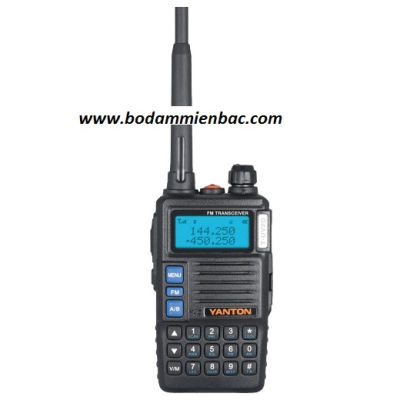

Bộ đàm cầm tay Yanton T-UV2D
1.Output Power:4W/5W
2.Frequency Range:136-174MHz&400-480MHz
3.Dual Band, Dual Display, Dual Standby
4. 2*128 Channels Storage
5.Emergency Alert
6.FM Radio and 25 Stations Storage
7.CTCSS/DCS Scanning
8. 0-9 Grades VOX Selectable
9.Multi and Priority Channel Scan Function
10.Channel Name Display and Setting
11.Power-on Message Display
12.Frequency Difference Setting
13.PC Software Programmable, Wired Clone Function
14.Reverse Frequency
15.Wide/Narrow Band(25kHz/12.5kHz)
16.Busy Channel Lock-out(BCLO)
17.Transmitter Time-out Timer(TOT)
18.End-tone Elimination
19.LED Setting
20.Beep Setting
21.Transmit Over Beeper
22.Dual Monitor
23.Receive Power Saving
24.Battery Power Display
25.Repeater Shift Direction
26.Frequency Spacing Function
27.Shortcut Menu Operation Mode
28. High/Low TX Power Selectable
29. 2200mAH Li-ion Battery
| GENERAL |
| Frequency Range | 136-174MHz/350-390MHz/400-480MHz |
| Operating Temperature | -20℃ to +55℃ |
| Frequency Combination | please lock frequency synthesize |
| Frequency Stability | ±2.5ppm |
| Memmory Channel | 2*128channel |
| Working Voltage | 7.4v |
| Antenna Impedance | 50Ω |
| Operating Mode | simplex of co-frequency or alien |
| Dimensions | 122*60*38mm |
| Weight | 232g |
| TRANSMIT PART |
| RF power | 5w |
| Modulate Mode | F3E |
| Max.Freq.Deviation | ≤5KHz |
| Remain Wave Radiation | ＜-60dB |
| Transmitting Current | ≤1000mA |
| RECEIVER PART |
| Sensitivity | ＜0.20uV (12dB SINAD) |
| Squeich Sensitivity | ＜0.20uV |
| Intermodulation Antijamming | 50dB |
| Audio Power output | 500mW |
| Receiving Current | ≤100mA |
| Squelch Stangby | 20mA |
