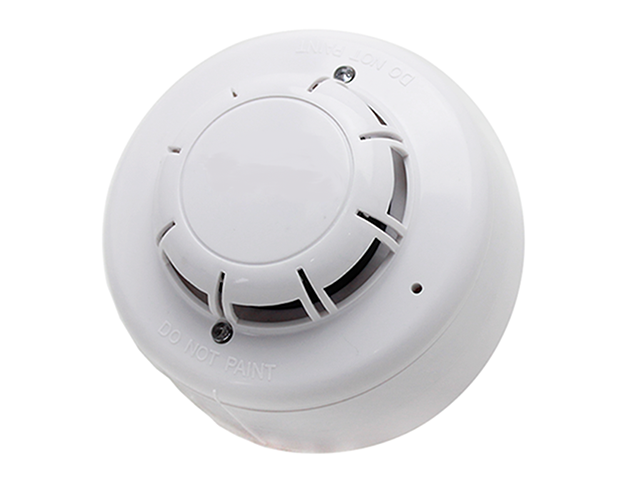

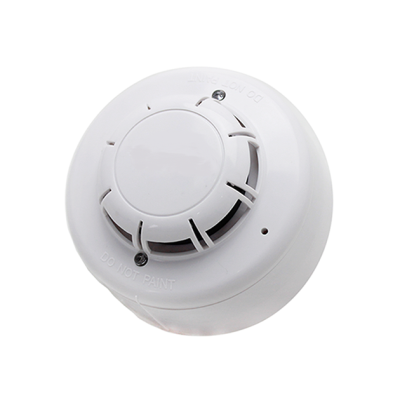

Bộ báo nhiệt Heat Detector KOMAX KM-809HN-2/4
Product Introduction:
This heat detector takes fixed temperature or combination rate-of-rise and fixed temperature detection, suitable to any household or commercial applications. The detector is made up of an externally mounted thermistor with a specially designed cover that protects the thermistor while allowing maximum air flow. The thermistor reads the temperature from the air it takes in and transmits a signal representing the temperature to the panel. If the temperature reaches or exceeds the trip point or the temperature increase reaches or exceeds the rate-of-rise, the detector is triggered. The status LED lights in red and alarm signal is output. The detector is an ideal unit to detect rapid fire developments in houses, shops, hotels, restaurants, offices, schools, banks, libraries and etc.
Main Features:
* MCU processing, eliminate false alarm
* Low standby current
* Anti-RFI & Anti-EMI
* 9-35VDC wide operating voltage range
* LED flashing visible in 360 degrees direction
* Power supply non-polar input
* Remote LED indicator output (2 wire)
* Dustproof, mothproof, anti-light interference design
* Execute criterion: GB4716, EN54-5
Technical Specifications:
| Model | KM-809PN-2 | KM-809PN-4 |
| Network type | 2 Wire | 4 Wire |
| Alarm temperature | Fixed 135℉(57℃). |
| Power | DC10-30V |
| Static current | ≦55uA | 16mA(NC); 2mA(NO) |
| Alarm current | 35mA@DC24V | 6mA(NC); 20mA(NO) |
| Alarm output | Remote LED | Relay output(Dry contact) |
| Working environment | Operation temperature:-10℃～+55℃, Operation Humidity: <95% |
| Dimension | Φ99*48mm |
Notice:
1. The detector cannot be installed in places exposed to direct sunshine or heat sources.
2. It is advised to install the detector nearby a smoke detector.
3. Make the base fixed firmly and all wire connections right.
4. Test the detector every three months.
